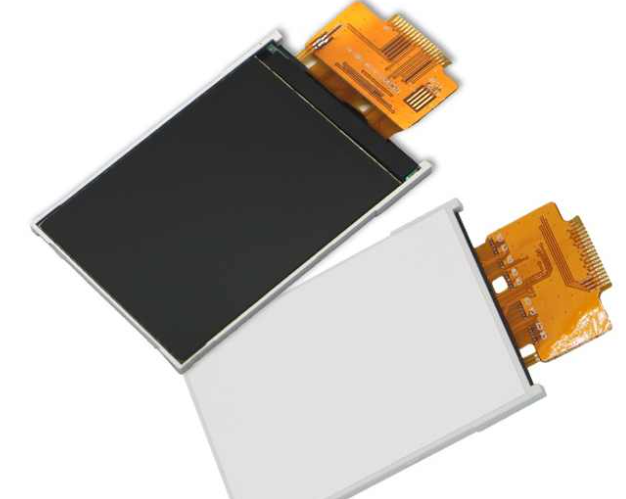

Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots
Key Features
-
Size and Resolution:
- 2.4-inch diagonal size - Compact design ideal for space-constrained devices
- 240x320 pixel resolution - Provides clear text and detailed graphics for user interfaces
-
IPS Technology:
- 178° wide viewing angles with consistent colors and brightness
- Superior color accuracy and vibrancy compared to TN displays
Technical Specifications
| Item |
Specification |
| Product Name |
2.4 Inch TFT LCD |
| LCD Type |
IPS, QVGA |
| Viewing Angle |
Free |
| Resolution |
240x320 dots |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
| FPC Connector |
18PIN, soldering type |
| Driver IC(COG) |
NV3030B |
| Interface |
SPI |
| Backlight Type |
4-LED, White, 80mA |
| Outline Dimension |
42.72(H)*60.26(V)*2.40(D) mm |
| Active Area |
36.72(H)*48.96(V) mm |
Application Scenarios
This versatile 2.4-inch TFT LCD screen is suitable for various applications including:
- Consumer Electronics: MP3 players, handheld game consoles, electronic dictionaries
- Medical Equipment: Blood glucose meters, blood pressure monitors
- Industrial Control: Small instruments and control panels
- Smart Home: Smart doorbells, thermostats, and other IoT devices
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
We can accommodate custom specifications. Please send us your detailed requirements or samples, and we'll recommend or customize the appropriate solution.
2. This LCD is just what we want, but it is big size, do you have any smaller size?
For segment type LCD modules requiring size or content modifications, we can create new tooling to meet your exact requirements.
3. This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type according to your specifications.
4. I want to customize a new LCD module. Can you do?
Absolutely. Please provide your drawings or specifications including outline size, display information, and technical requirements.
5. What is leading time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.
6. Can you send us samples for checking?
Yes, sample orders are available for standard products.
7. What is the Leading Time?
Standard products ship in 1 day after payment. Custom production typically takes 15-30 days, with possible earlier completion.
